Description:

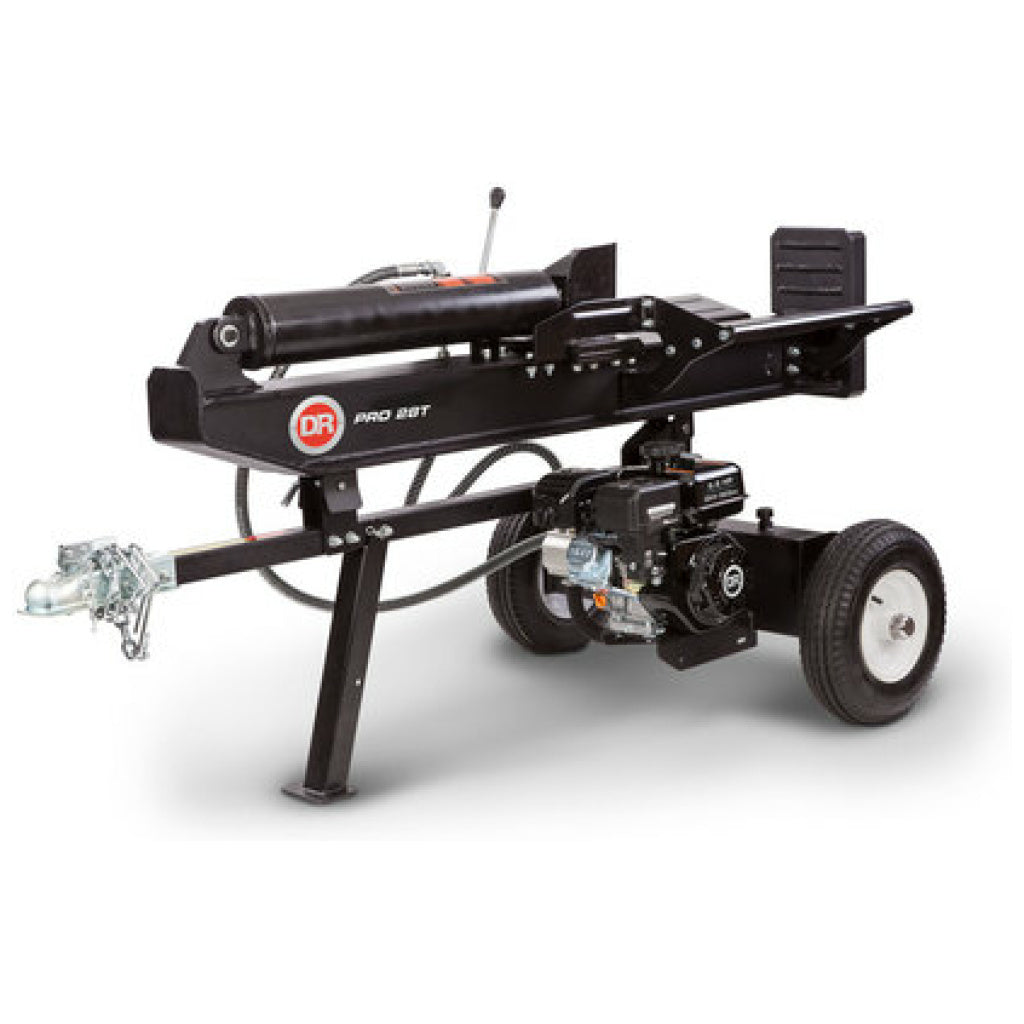

DR Log Splitter WH2 28-Ton #WH25028DMN
Split big logs in either horizontal or vertical position (great for logs that are too heavy to lift). Switch configurations in seconds without tools. 16-second cycle time. Road-towable at speeds up to 45 mph
SPECIFICATION:
DIMENSIONS
Height35.4 inLength83.6 inWedge Height7.94 inWedge Width1-3″Weight511 lbsWidth40.6 in
ENGINEFt Lbs Torque*9.59 ft-lbs gross torque (per SAE J1940)Horsepower6.6 HPMakeDR
FUEL_SYSTEMFuel Capacity0.95 gals
GENERALAssemblySome assembly required
HYDRAULICSCylinder Size4.5″ bore, 23.65″ strokeHydraulic Component Rating3450 psiPump2 Stage, 8.8 gpmReservoir4 gal
WHEELS_TIRESNumber of Tires2Tire Size16″
WARRANTYEngine Warranty2 years residential, 90 days commercialMachine Warranty2 years residential, 90 days commercial
SPLITTINGAverage Cycle Time17 secsMax Log Diameter30 inMax Log Length25 inSplitting Force28 tons
.
