Exmark

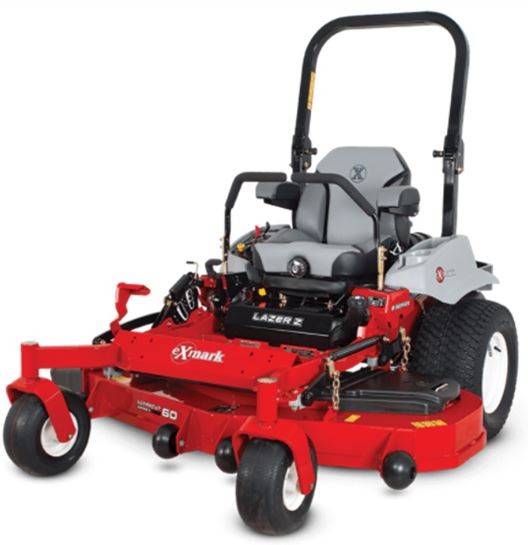

Exmark Lazer Z-E Series 60" Deck LZE742GKC604A3

Exmark Lazer Z-E Series 60" Deck LZE742GKC604A3

SKU:LZE742GKC604A3-LZE742GKC604A3

Regular price $13,299.99
Regular price $13,299.99 Sale price $13,299.99
Sale Sold out
 More payment options

Couldn't load pickup availability

Exmark Lawn Mowers
View Product details
product-img
Exmark Lazer Z-E Series 60" Deck LZE742GKC604A3
Regular price $13,299.99
Regular price $13,299.99 Sale price $13,299.99

Description:

perfect choice for professional landscape contractors who want the innovative engineering and commercial-grade quality of a Lazer Z zero turn riding mower, but in a value package. It features the same welded, heavy-duty, 1.5”x 3” tubular steel unibody frame found throughout our Lazer Z models. You can also choose from two rugged Kawasaki® V-Twin engines or a Kohler® Command™ EFI engine matched to a full-floating, UltraCut™ Series 4 cutting deck, in 48, 52, 60 or 72 inch widths. A digital operator diagnostic module simplifies system monitoring and troubleshooting, while the fuel gauge uses ultrasonic waves to provide a more accurate reading. Comes equipped with a full-suspension seat that enhances operator comfort.

Specifications:

Power & Engine

  • Engine Brand: Kohler
  • Engine Model: CV742
  • Engine Series: Command™
  • Engine Spec: 3037
  • Engine Displacement: 747 cc
  • Engine Speed: 3,750 rpm
  • Air Filter: Heavy-duty canister air filtration system
  • Fuel Type: Gas Carbureted
  • Fuel Capacity: 8-gallon (30.3 L), single tank
  • Fuel Indicator: Yes – electronic sender
  • Carb Compliant: No

Transmission & Drive

  • Drive Type: Hydro-Drive
  • Transmission: Hydrostatic
  • Speed Range:
  • Forward: 0–10.0 mph (16 km/h)
  • Reverse: 0–6.0 mph (9.7 km/h)
  • Drive Description:
  • Two Exmark-exclusive Parker unitized pump and wheel motor systems featuring:
  • 12 cc pumps
  • 14.5 in³ motors
  • No hoses
  • Integrated cooling fans
  • Shock valve
  • 1.7-quart integrated reservoir
  • Spin-on filter
  • Heavy-duty components
  • Drive Wheel Release: Allows unit movement without engine running

Deck System

  • Deck Style: Floating Deck
  • Deck Series: UltraCut Series 4
  • Deck Width / Cutting Width: 60"
  • Deck Description:
  • Side discharge standard, molded chute; mulching and bagging optional
  • Deck Construction:
  • 10-gauge formed top, continuously seam welded
  • 7-gauge side skirt
  • 7-gauge formed and welded spindle mounting
  • Blade Tip Speed: Approx. 18,500 fpm
  • Blades: 3 blades at 20.50" length each
  • Cutting Heights:
  • 1.0" to 5.5" (2.5–11.8 cm) in 0.25" (0.64 cm) increments, adjustable from operator seat
  • Deck Lift: Standard foot-controlled, for quick height changes and obstacle clearance

Spindles

  • Blade Spindles:
  • No-maintenance, sealed, non-greasable
  • 7.75" cutter housing
  • 25 mm (0.98") spindle shaft
  • Splined blade driver

Chassis, Comfort & Safety

  • Tractor Frame:
  • Unibody, welded heavy-duty 1.5" x 3" tubular steel
  • Seat:
  • Deluxe, bolstered suspension seat with Elastomeric Vibration Control (EVC)
  • Fore and aft adjustable from operator’s position
  • Steering Control:
  • Hydraulically dampened twin levers
  • Fore/aft adjustable
  • 3-position adjustable dampeners
  • 2-position height adjustable
  • Electrical:
  • 12-volt battery
  • 15-amp alternator
  • Standard Features:
  • Engine hour meter
  • Cup holder

Wheels, Tires & Brakes

  • Drive Tires: 24 x 12-12, 4-ply Super Turf®
  • Front Caster Tires: 13 x 6.50-6, smooth tread, pneumatic
  • Caster Forks: 0.50" thick yoke arms
  • Parking Brake: Lever-actuated disc brake

PTO & Safety

  • PTO Engagement:
  • MagStop electromagnetic clutch
  • 200 ft-lb with spot brake
  • Safety Package:
  • Operator Presence Controls (OPC)
  • Drive system interlock
  • Safety interlock system indicators
  • ROPS:
  • 2-post foldable ROPS with seat belt and latch

Dimensions

  • Width: 72.8 in (184.9 cm)
  • Length: 83.1 in (211.1 cm)
  • Height: 70 in (177.8 cm)
  • Curb Weight: 1,147 lbs

Width Weight Height Length
83.1 Inch 1147 Pounds 0 Inch 0 Inch
