Description:

Features:

• 4-BLADE IMPELLER - FABRICATED AND BALANCED, 20-INCH, 4-BLADE IMPELLER: Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.
• SMART CONSTRUCTION AND CONVENIENT SERVICEABILITY - EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE: 1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
• LOCKING BOOM ARM AND INTAKE NOZZLE - SAFE AND CONVENIENT TRANSPORT: Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.

Specification:

• Manufacturer: SCAG Power Equipment

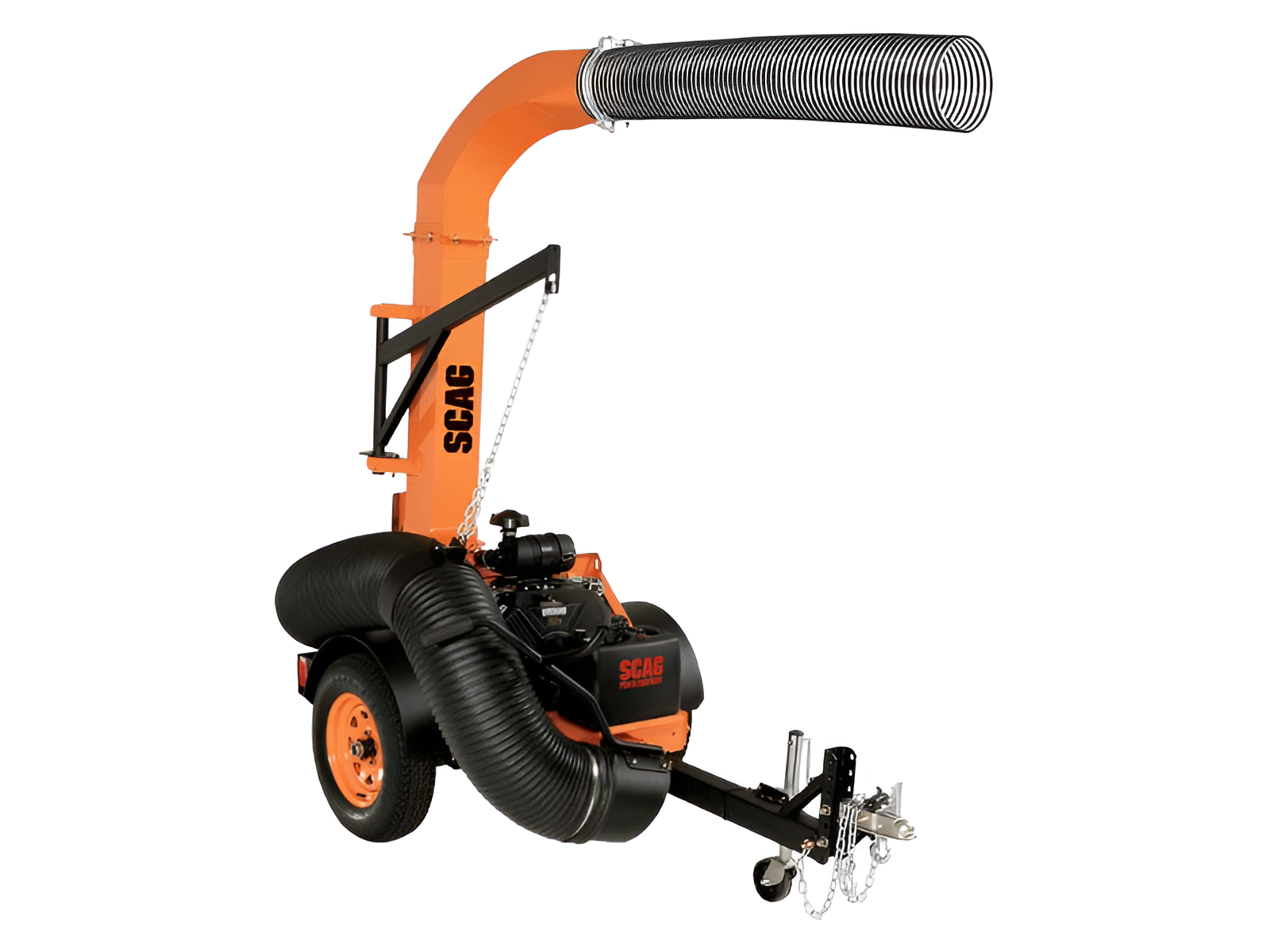

• Model: Tow-Behind (TL20W-26CH-EFI)
• Model Code: TL20W-26CH-EFI
• Color: Orange

BODY

• Frame: Construction - All-steel, welded
• Blower Construction: Removable back panel for easy impeller and wear plate access
• Blower Wear Plates: Standard 1/4 in. steel, replaceable

DIMENSIONS

• Length:
• Intake Hose: 120 in.
• Discharge Tube: 60 in.
• Height: 110 in.
• Width:
• Trailer: 53.5 in.
• Impeller: 6.5 in.
• Housing: 7.5 in.
• Diameter:
• Impeller: 20 in.
• Discharge Tube: 8 in.
• Weight: 990 lb.

ENGINE

• Engine: Kohler® Command PRO® EFI, V-Twin
• Horsepower: 26.5 hp
• Starter: Electric
• Fuel Tank Capacity: 5.5 gal. plastic tank with built-in fuel gauge

OPERATIONAL

• Blades Output: 4,680 cfm
• Discharge Tube: Clear thermoplastic
• Tires: 205 / 75 R15 highway tires with steel wheels
