Description:

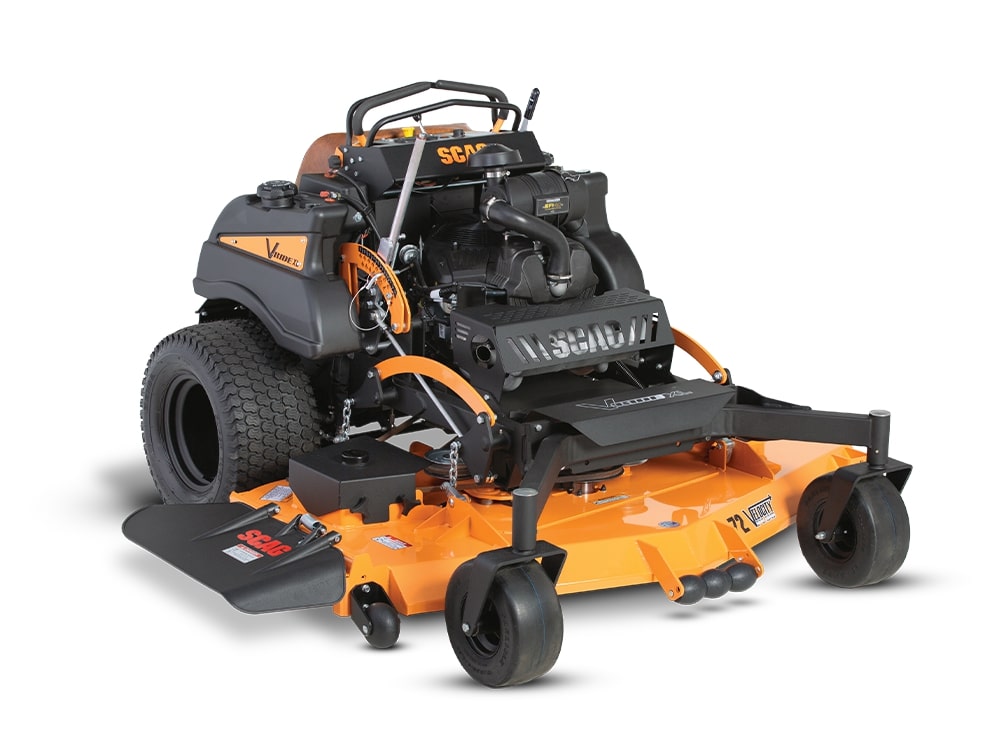

The V-Ride XL proves that it’s possible to be tough as nails and soft as a cloud. Its solid frame and expansive operator platform with an adjustable suspension to reduce vibration ensure you’re always riding in comfort no matter how big the job. Upgraded pumps and wheel motors are extra rugged and reliable, giving you confidence you’re always ready to tackle whatever comes your way.

Specifications:

Dimensions

• Length: 70.5″
• Tracking Width: 51.5″
• Width (Chute Down): 65.25″
• Width (Chute Up/Transport): 53.75″
• Height: 47.75″
• Weight: 1,150–1,179 lb

Fuel System

• Fuel Type: Gas
• Fuel Capacity: 12 gallons

Tires

• Drive Tires: 24″ x 9.5″ - 12″
• Caster Tires: 13″ x 6.5″ - 6″

Drive System

• Type: Dual pump & motor
• Pumps: Hydro-Gear 16 cc
• Motors: Hydro-Gear 18 ci
• Forward Speed: Up to 11.6 mph
• Reverse Speed: Up to 5 mph
• Parking Brake: Hand lever

Deck

• Type: Velocity Plus™ cutter deck
• Cutting Width: 52″
• Cutting Height Range: 2″ to 6″ (¼″ increments)
• Lift Type: Hand lever
• Construction: Tri-plate deck (3 layers of steel totaling ~½″ thick), reinforced at spindle areas
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura 3.5 clutch (250 ft-lb torque) with adjustable air-gap
