Description:

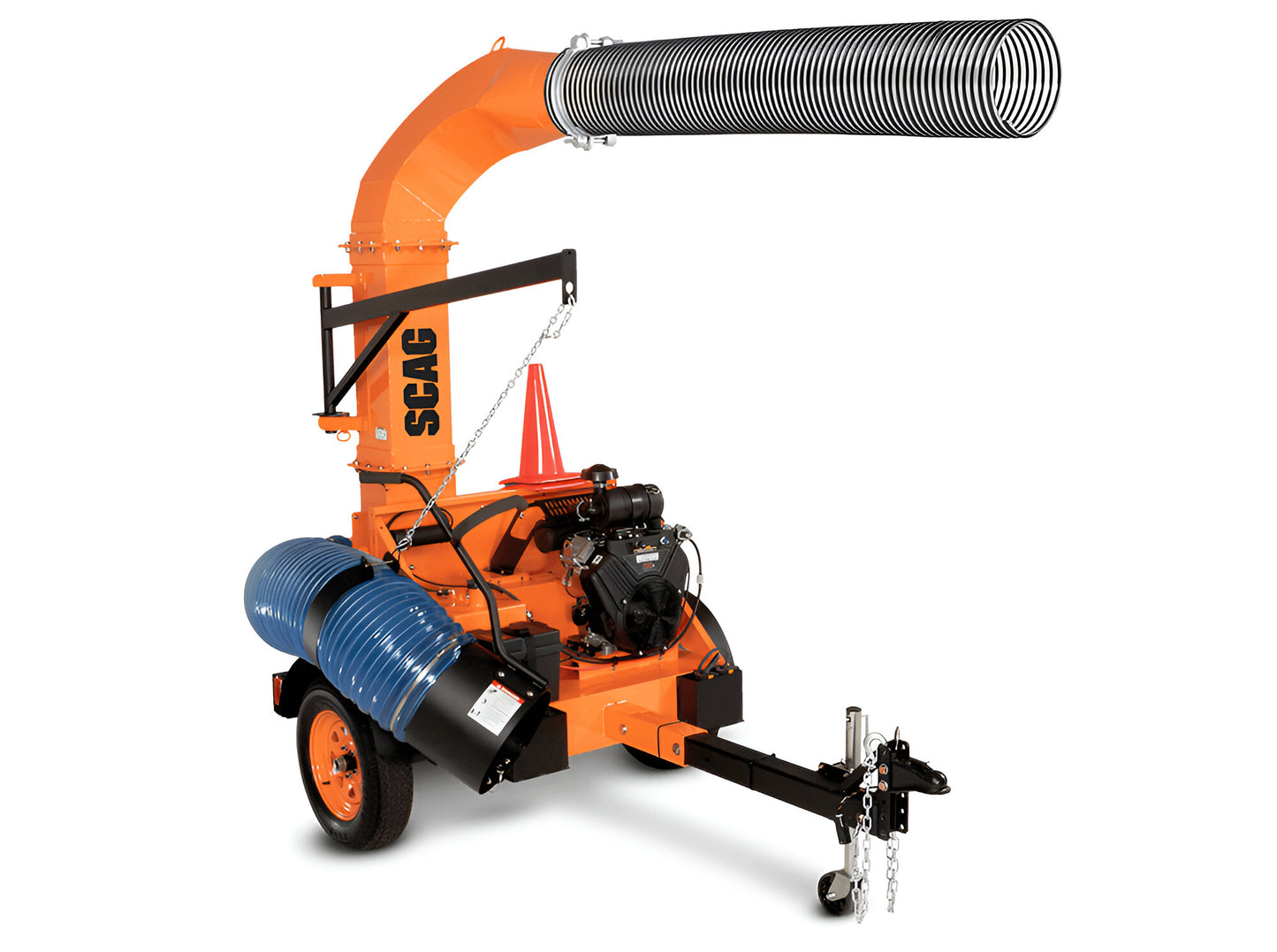

When the best demand the best, it’s time for the toughest and most powerful: the Scag® Industrial Tow-Behind Truck Loader. No matter the job—from landscaping and municipal operations to golf courses—this machine features the commercial-grade size and performance needed to get the job done. Leave the rest behind and work with the best.

Fabricated and Balanced, 25-Inch, 4-Blade Impeller

Within the unit’s 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design.

Specification:

TLB25-35BV

• Engine: Briggs & Stratton® Vanguard™ BIG BLOCK™, V-Twin, electric start
• HP: 35
• Fuel Capacity / Tank: 8.5 gallons – plastic tank with built-in fuel gauge
• CFM Output: 6,781
• Frame Construction: All-steel, welded
• Impeller Construction: 4-blade, 1/2″-thick blades, all-steel, welded
• Impeller Mounting: Straight bore
• Impeller Diameter / Width: 25″ / 9″
• Blower Housing Construction: Removable back panel for easy impeller and wear plate access
• Blower Housing Width: 10.5″
• Blower Housing Wear Plates: Standard: 1/4″-steel, replaceable
• Intake Hose Specifications: 84″ length, 16″-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip
• Unit Mounting: Hitch: at least 10,000 lb rating
• Discharge Tube: Clear thermoplastic, 12″ diameter, 84″ length
• Throttle Control: Commercial-grade, all-steel mechanicals
• Highway Ready: Yes – standard roadside package, including wheel chocks and cones
• Axle: Heavy-duty Dexter Torflex® axle (3,500 lb)
• Tires: 205 / 75 D15 highway tires with steel wheels
• Trailer Width: 66.75″
• Accessories: Light Kit, Brake Kit
• Height: 121.25″
• Weight: 1,700 lb
• Warranty: 2-Year Commercial; 90-Day Rental
• MSRP: $16,249
