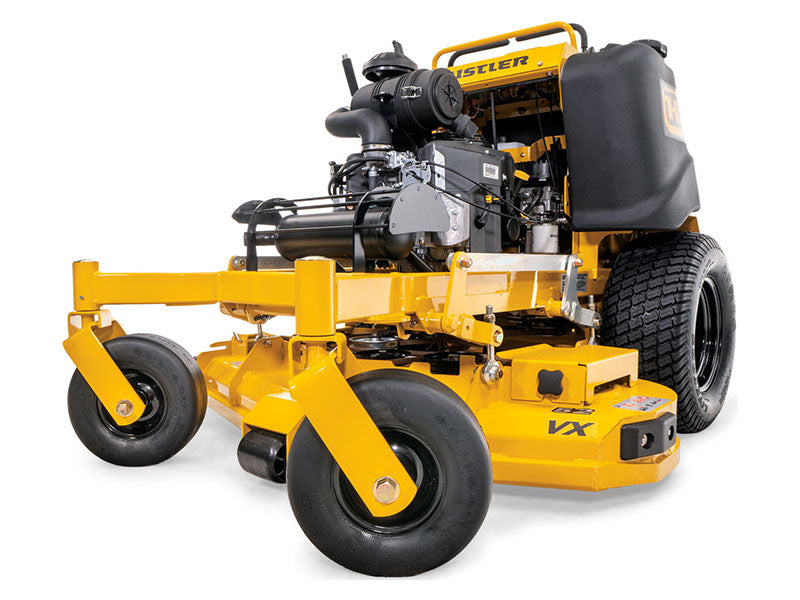

TURF EQUIPMENT SUPER S 52 IN. KAWASAKI FX850 EFI 29.5 HP 943142

Description:

Condition New Category Lawn Mowers - Riding Model Type Super S Model Code943142 Color Yellow

FEATURES OPERATOR COMFORT:

Adjustable spring loaded suspension foot platform for all-day comfort. ERGONOMIC CONTROLS: Provides less operator fatigue, easy to handle. SERVICE FRIENDLY DESIGN: Designed to make maintenance and service simple and easy. COMPACT DESIGN: Small footprint, can go where other machines can't. VX DECK: Fabricated 7 ga. steel engineered for extreme vacuum for enhanced performance and cut quality. PULLEY COVERS: Toolless removable pulley covers for easy maintenance. PARK BRAKE: Hand operated lever to set the park brake.

CUT HEIGHT ADJUSTMENT:

Hand operated lever and pin to adjust deck/cutting height. WIDE OPERATOR PLATFORM: For all-day mowing comfort and operator stability. ADJUSTABLE FOOT PLATFORM: Spring loaded suspension platform for all-day comfort. SERVICE FRIENDLY DESIGN: Designed to make maintenance and service fast and easy. 24” REAR DRIVE TIRES: For superior traction. (48”, 52”, 60”) ADJUSTABLE SPEED CONTROLS: Allows you to go at your own pace for added control. Also helps with training new operators.

SPECIFICATIONS GENERAL INFORMATION

Manufacturer Hustler Turf Equipment Model Year2023 Model Super S 52 in. Kawasaki FX850 EFI 29.5 hp Model Code943142 Color Yellow BODY Frame 1.5 x 3 in. steel tubing Engine plate - 7 ga. with 11 ga. jackshaft doubler Operator platform - 7 ga. with embossed tread pattern Operator Pad - Bolstered operator pad DRIVETRAIN Drive Type Dual hydrostaticTransmissionHydro-Gear 12 cc pump with Parker TL wheel motors Travel SpeedUp to 9 mphWheels/Tires Front caster wheel - Tapered wheel bearings and debris cap Front caster fork - Fabricated 3/8 in. steel Drive Tires24 x 9.5 - 12 in.Steering Tires13 x 5 - 6 in. AxlesFront - Fabricated with tapered roller bearingsParking BrakeHand operated drum brakes ENGINE Engine Make Kawasaki Engine ModelFX850 EFI CoolingAirHorsepower29.5 hp (Per SAE J1995) Displacement726 ccAir CleanerHeavy duty canister Fuel Capacity7.3 gal.

MEASUREMENTS

Length 68 in.Width With chute up - 52.8 in. Tire to tire - 45.8 in. Height47 in.Weight1,182 lb. Cutting Width Side discharge - 52 in.Cutting Height1.5 - 5.5 in. OPERATIONAL Deck Construction Depth - 5.5 in. 7 ga. Fabricated with 7 ga. wrappers Impact Trim Area - 11 ga. formed channel with rolled edge Deck Lift Hand operated Deck Engagement Electric PTO clutch Spindles Ductile cast iron with steel shafts and sealed ball bearings Mounts - 7 ga. with 11 ga. doubler Blades 3 Length - 17.86 in. Blade Tip Speed17,700 Working Area Capacity Productivity (acres per hour) - 3.79 OTHER Warranty Engine - 3 Year Limited - 5 Year / 1200 Hour (First 2 Years No Hour Limit)
